Overview

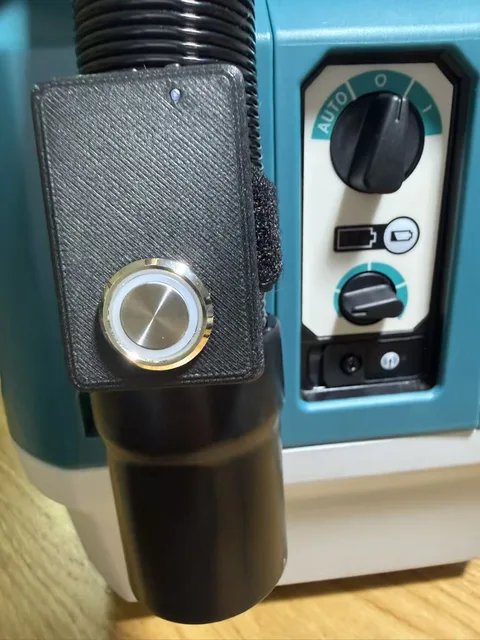

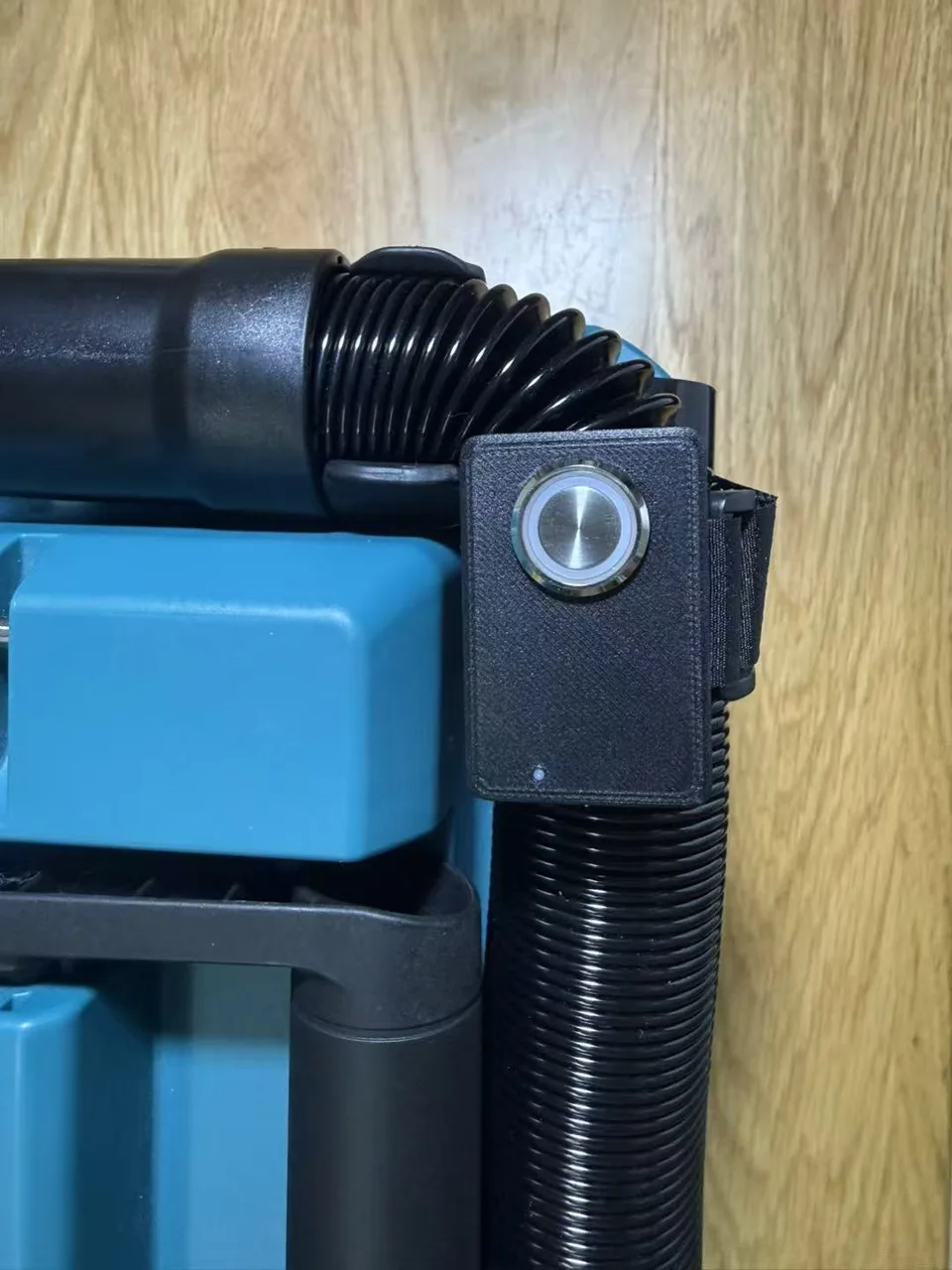

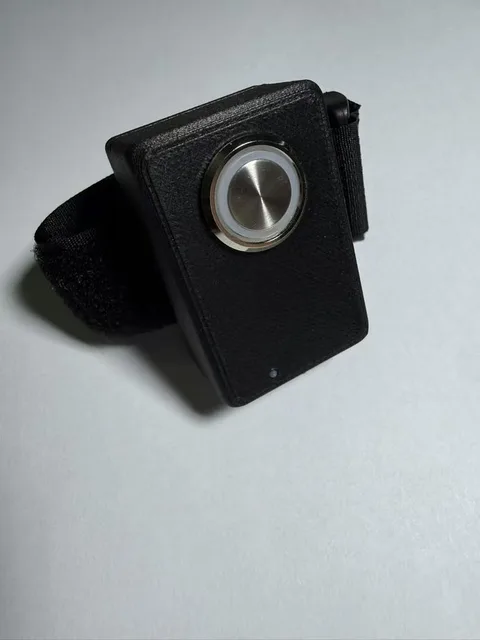

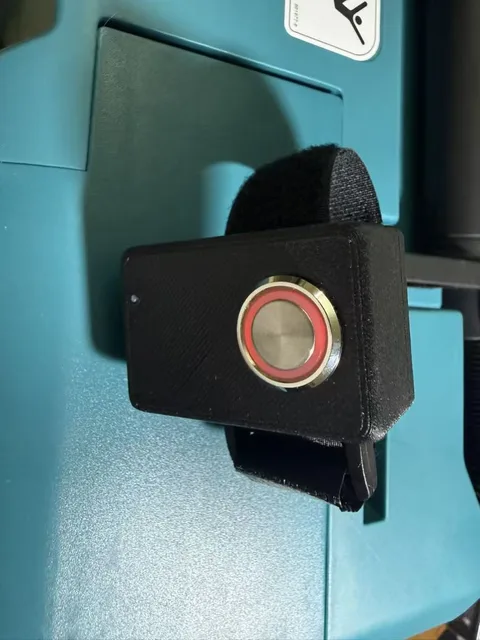

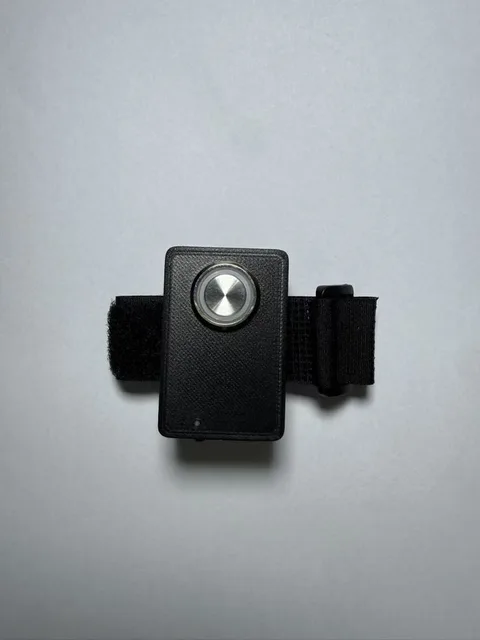

The Wireless Tool Remote is an independently developed Bluetooth remote control for compatible Makita AWS vacuum and dust extractor setups.
After pairing, press the button to send a wireless start signal. Press it again to stop the trigger. No drilling, disassembly, internal wiring, mobile application, or cloud account is required for normal operation.
Target Compatibility
Designed for selected AWS-enabled dust extractors, including:
- VC013G
- VC006G
- VC004
- DVC157
- DVC154
- DVC864
- Other independently verified compatible models
Compatibility may vary by model, production batch, regional version and firmware revision. Please confirm the exact model before purchase.
Main Features
- Direct wireless pairing with a compatible receiver
- Single-button trigger control
- Pairing and protocol unpairing functions
- RGB indicator for trigger, pairing and unpairing states
- Built-in rechargeable lithium battery

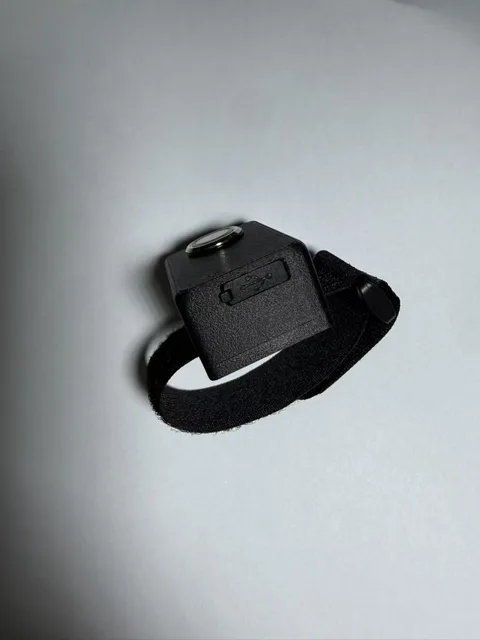

- USB Type-C charging port
- Charging indicator
- Dust cover for the charging port
- Automatic low-power sleep when inactive
- High-strength ABS-CF enclosure
- No modification to the dust extractor body
- Standard and long-endurance versions available
Version Comparison
| Feature | Standard Full-Feature | Long-Endurance |
|---|---|---|
| Continuous operation | Approx. 12 hours | Approx. 150 hours |
| Standby time | Approx. 60 days | Approx. 180 days |
| Local web management | Yes | No |
| Paired receivers | Up to 30 | Up to 20 |
| Open-area range | Approx. 50 m | Approx. 30 m |
Battery life and wireless range are reference values measured under specific conditions. Actual results depend on battery capacity, trigger duration, obstacles, radio interference and receiver hardware.
Basic Operation
- Charge the remote through the USB Type-C port.
- Place the compatible dust extractor in pairing mode.
- Use the remote's pairing operation to complete wireless registration.
- Short-press the button to start continuous triggering.
- Press the button again to stop triggering.
- The remote automatically enters a low-power sleep state when inactive.
Important Notes
- This remote sends a wireless trigger signal only. It does not directly switch mains electricity or control an AC load.
- Do not use wireless automatic activation with dangerous equipment where unexpected startup could cause personal injury or property damage.
- No physical modification to the dust extractor body is required. Warranty coverage remains subject to the manufacturer's and local distributor's policies.
Disclaimer
This is an independently developed third-party compatible accessory. It is not manufactured, authorized, sponsored, approved or endorsed by Makita Corporation.
Makita and AWS are trademarks of their respective owner and are used only to describe compatibility.
Common questions
Which dust extractors are supported?
The product is designed for selected AWS-enabled models including VC013G, VC006G, VC004, DVC157, DVC154 and DVC864. Compatibility should be confirmed before purchase.
What is the difference between the two versions?
The Standard Full-Feature Version includes local web management and supports up to 30 paired devices. The Long-Endurance Version uses physical-button control only, supports up to 20 devices and provides longer battery life.
Does installation require modification to the dust extractor?
No. Pairing is wireless and does not require drilling, disassembly or internal wiring.
Does it require a mobile app?
No. Normal trigger, pairing and unpairing operations use the physical button. The Standard Version provides optional management through a local web page.
Are the stated range and battery life guaranteed?
They are reference values measured under specific conditions. Actual results depend on obstacles, interference, battery condition and usage.
Is this an official Makita product?
No. It is an independently developed CustomBenchTools product. Makita and AWS are referenced only to describe compatibility.
